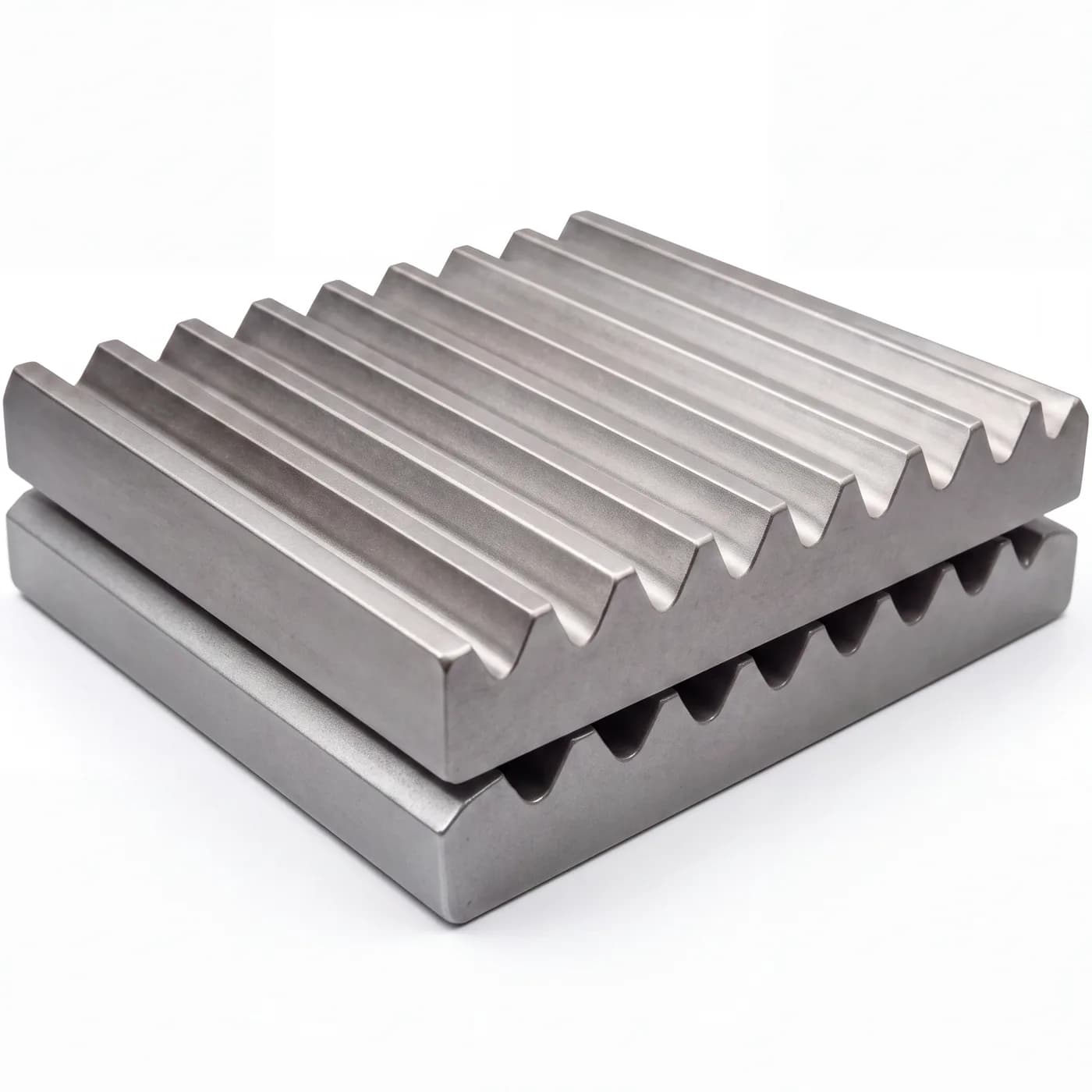

Moving Jaw Plate
Attached to the moving swing jaw (pitman) assembly. It moves in an elliptical or linear rocking motion to actively squeeze and crush the material against the fixed plate.
Technical data
More from Jaw Crusher
All Jaw Crusher castings
Mining & Crushers
Fixed Jaw Plate
Fastened securely to the stationary front frame of the crusher. It remains completely still and absorbs the direct impact of incoming, uncrushed rock.
Mining & Crushers
Jaw Crusher Cheek Plate
White iron option: extremely hard (wear-resistant) but brittle – suitable only where impact energy is low. Mn steel: tough and work-hardening – better for high impact. Selection depends on feed material hardness and fragmentation.
Mining & Crushers
Jaw Crusher Wedge
Mining & Crushers
Toggle Plate
Toggle transmits crushing force – high compressive load. Cast steel (not Mn) – high compressive strength required not wear resistance.
