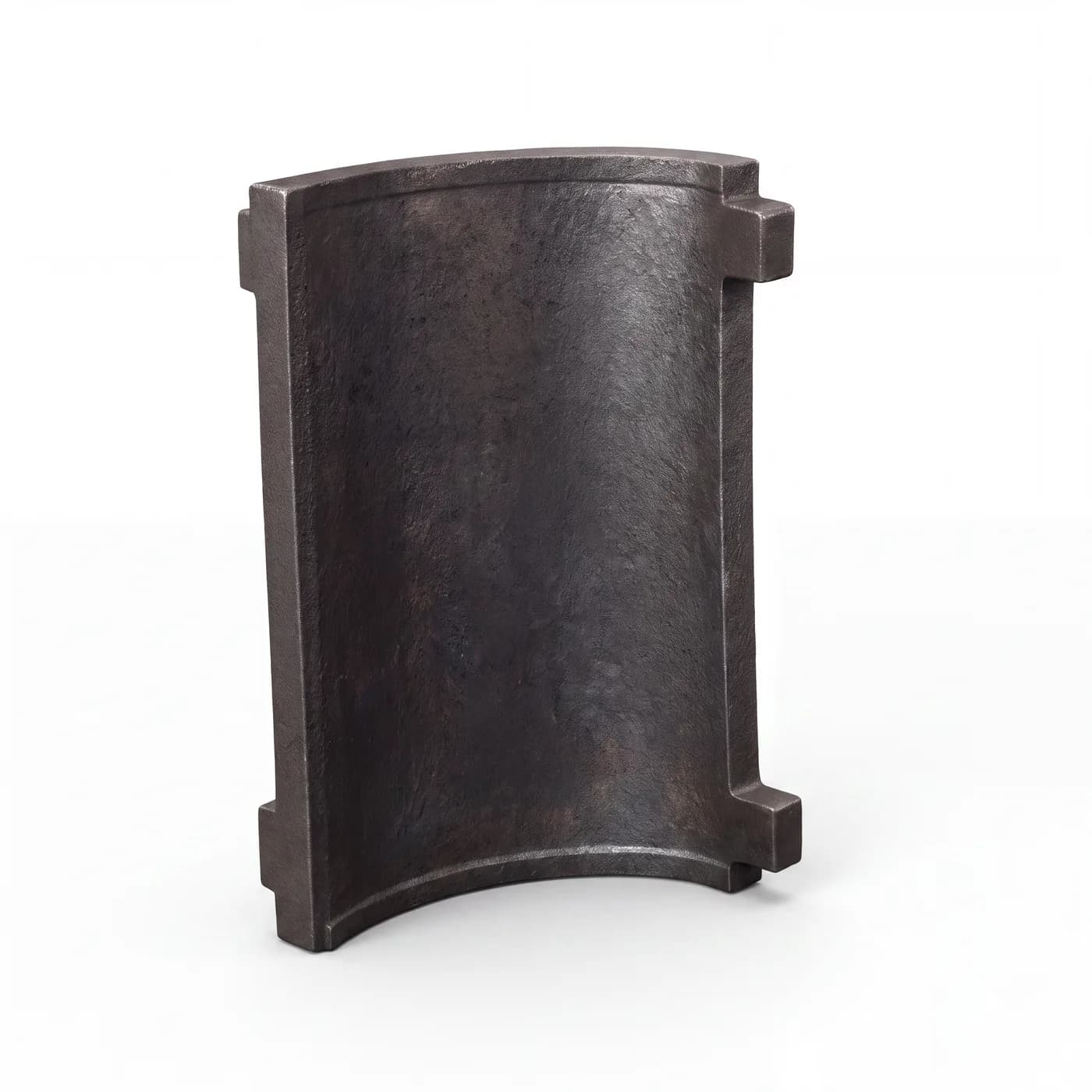

DIP pipe cast segment (preheater cyclone)
A dip pipe cast segment in a preheater cyclone is a modular, heat- and wear-resistant metal casting that fits together with other segments to form the cylindrical inner gas outlet (dip tube or vortex finder)
More from Kiln & Pyroprocessing
All Kiln & Pyroprocessing castings
Cement
Hot Fired Nozzle
A hot fired nozzle in a clinker cooler system is a specialized high-temperature component often shaped at a 90-degree angle with a flanged connection used to handle extreme thermal loads, direct hot gases, or inject cooling water and air streams in cement manufacturing lines
Cement
Kiln inlet / outlet castings plates
Kiln inlet and outlet casting plates (also called tip plates, nose-ring plates, or sector castings) are heavy-duty, heat-resistant steel segments bolted to the extreme ends of a rotary kiln to lock the refractory lining in place and protect the steel shell from extreme temperatures
Don't See Your Part? We'll Cast It From Your Drawing.
Send a drawing, sample, or spec and we'll cast it in the right alloy from 25 to 5,000 kg, then machine and inspect it to print. Quote back in 48 hours, no minimum order.
