Mining & CrushersCone Crusher

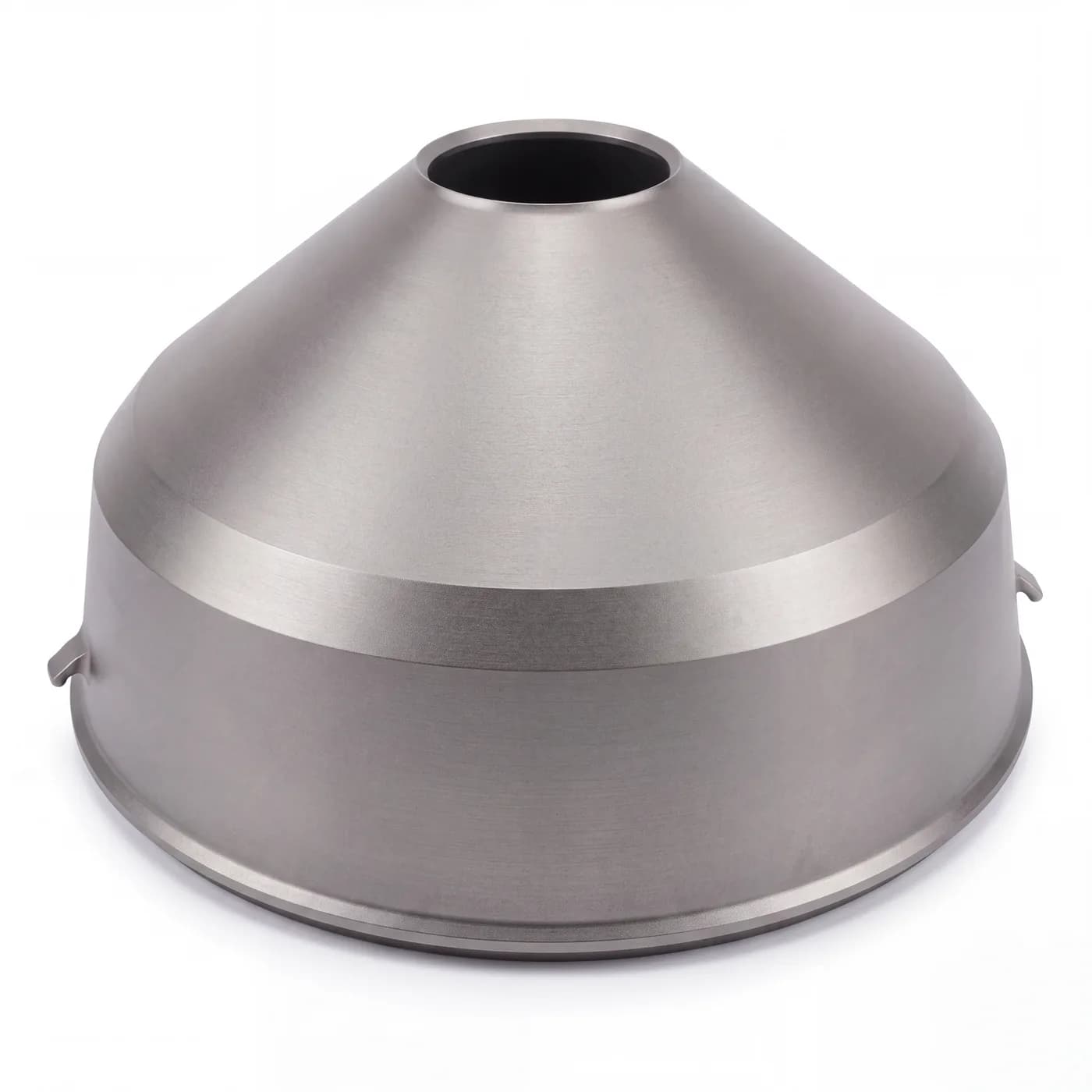

Cone / Mantle Liner
The cone crusher mantle (or cone liner) is the moving protective wear part mounted on the crusher's main shaft assembly
Size Range
20 – 90 "
Weight Range
200 – 4,500 kg
Material Class
HadfieldWhite IronMn Steel
Industry
Mining & Crushers
Family
Cone Crusher
